Casa Produtosplacas de aço inoxidável

S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão

Certificado
CHINA JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Certificações
CHINA JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Certificações
Revisões do cliente
esta é a segunda ordem l compra esta empresa, qualidade é muito boa, mesmos como a qualidade .we do europure irá no ccooperate com esta empresa.

—— Andrew Greg - Turquia

A folha de aço inoxidável de 200 toneladas é chegada o 10 de outubro de 2014, a qualidade é muito boa., entrega o tempo é muito rápida ele é muito afortunada nós encontra esta fábrica

—— Acelga de Mechile Kilar - Brazial

Nós temos cooperar com esta fábrica muitos anos, tudo vamos muito Well.l como esta fábrica!

—— Tony Hilton - Polônia

Esta é nossa terceira compra de Mittel, qualidade do tempo é muito bens, nós está contente de encontrar esta fábrica segura

—— Natalya Ugay-Rússia

A qualidade é muito boa e prazo de entrega muito rápido, nós queremos fazer o negócio longo dos termos com esta empresa

—— Pongpol Pluemsati-Tailândia

Estou Chat Online Agora

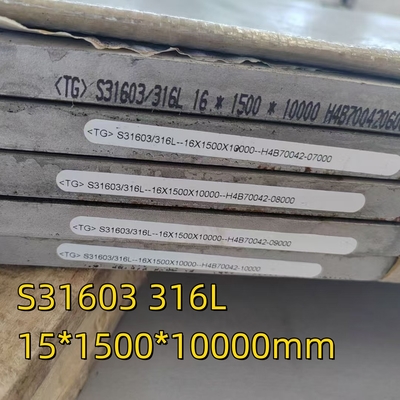

S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão

S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão
S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão

Imagem Grande :  S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão

Detalhes do produto:
Lugar de origem: porcelana
Marca: TISCO TSING SHAN
Certificação: ISO MTC SGS
Número do modelo: 316L
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100 KGS
Preço: 3.65 USD/KG
Detalhes da embalagem: paletes de madeira
Tempo de entrega: 7 dias
Termos de pagamento: L/C, T/T
Habilidade da fonte: 500000 kg

S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão

descrição
Tolerância: 0%-5% Técnica: Rolos a quente
largura: personalizado como pedido Faixa de comprimento: dentro de 10 medidores
Alimento seguro: - Sim, sim. Código do SH: 72192100 72192200
A prova de ferrugem: - Sim, sim. Duração: 2000-6000
TEMPO DE PRECIO: CORRENTE DE RELÓGIO, CFR, CIF Moinho: TISCO, ZPSS, etc.
Tecnologia: Rolos a quente Condições comerciais: CORRENTE DE RELÓGIO, CFR, CIF
A outra categoria: 304 316L 310S 321 410 420 430.etc Tratamento térmico: opcional
Diâmetro: Dentro de 3000 mm
Destacar:

S31603 Chapas de aço inoxidável

,

Placas de aço inoxidável ASTM A240

,

1.4404 Chapas de aço inoxidável

S31603 ASTM A240 AISI 316L DIN 1.4404 16*2000*6000MM NO.1 Surface



Product Name
stainless steel plate
Length
as required
Width
3mm-2500mm or as required
Thickness
0.03mm-300mm or as required
Standard
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc
Technique
Hot rolled / cold rolled
Surface Treatment
2B or according to customer requirement
Thickness Tolerance
±0.01mm
Material
201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L
Application
It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture,
ship components.
It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs,
and screen.
MOQ
1 ton , We can accept sample order.
Shipment Time
Within 3-5 workdays after receiving deposit or L/C
Export Packing
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Packing
Standard export packing for stainless steel sheet:
1.surface polish,2:bundle package,
3:wooden case,wooden pallet package,
4:container or bulk,
5:special according to customer's request

Chemical composition

GradeCSiMnPSNiCrMo
201≤0 .15≤0 .755. 5-7. 5≤0.06≤ 0.033.5 -5.516 .0 -18.0-
202≤0 .15≤l.07.5-10.0≤0.06≤ 0.034.0-6.017.0-19.0-
301≤0 .15≤l.0≤2.0≤0.045≤ 0.036.0-8.016.0-18.0-
302≤0 .15≤1.0≤2.0≤0.035≤ 0.038.0-10.017.0-19.0-
304≤0 .0.08≤1.0≤2.0≤0.045≤ 0.038.0-10.518.0-20.0-
304L≤0.03≤1.0≤2.0≤0.035≤ 0.039.0-13.018.0-20.0-
309S≤0.08≤1.0≤2.0≤0.045≤ 0.0312.0-15.022.0-24.0-
310S≤0.08≤1.5≤2.0≤0.035≤ 0.0319.0-22.024.0-26.0
316≤0.08≤1.0≤2.0≤0.045≤ 0.0310.0-14.016.0-18.02.0-
316L≤0 .03≤1.0≤2.0≤0.045≤ 0.0312.0 - 15.016 .0 -1 8.02.0 -
321≤ 0 .08≤1.0≤2.0≤0.035≤ 0.039.0 - 13 .017.0 -1 9.0-
630≤ 0 .07≤1.0≤1.0≤0.035≤ 0.033.0-5.015.5-17.5-
631≤0.09≤1.0≤1.0≤0.030≤0.0356.50-7.7516.0-18.0-
904L≤ 2 .0≤0.045≤1.0≤0.035-23.0·28.019.0-23.04.0-5.0
2205≤0.03≤1.0≤2.0≤0.030≤0.024.5-6.522.0-23.03.0-3.5
2507≤0.03≤0.8≤1.2≤0.035≤0.026.0-8.024.0-26.03.0-5.0
2520≤0.08≤1.5≤2.0≤0.045≤ 0.030.19 -0. 220. 24 -0 . 26-
410≤0.15≤1.0≤1.0≤0.035≤ 0.03-11.5-13.5-
430≤0.1 2≤0.75≤1.0≤ 0.040≤ 0.03≤0.6016.0 -18.0-

Surface Finish

SurfaceDefinitionApplication
No.1The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.Chemical tank, pipe etc.
No.3Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.Kitchen utensils, Building construction etc.
No.4Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.Kitchen utensils, Building construction, Medical equipment etc.
2BThose finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.Medical equipment, Food industry, Construction material, Kitchen utensils etc.
BA (No.6)Those processed with bright heat treatment after cold rolling.Kitchen utensils, Electric equipment, Building construction etc.
Mirror (No.8)Shinning like a mirrorBuilding construction, decoration etc.
HairlineThose finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.Building Construction etc.

 S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão 0S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão 1S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão 2S31603 ASTM A240 AISI 316L DIN 1.4404 16*1500*10000MM NO.1 Superfície para recipientes sob pressão 3
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
