Hot Rolled Forged EN 10084-2008 DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar

Certificado
CHINA JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Certificações
CHINA JIANGSU MITTEL STEEL INDUSTRIAL LIMITED Certificações
Revisões do cliente
esta é a segunda ordem l compra esta empresa, qualidade é muito boa, mesmos como a qualidade .we do europure irá no ccooperate com esta empresa.

—— Andrew Greg - Turquia

A folha de aço inoxidável de 200 toneladas é chegada o 10 de outubro de 2014, a qualidade é muito boa., entrega o tempo é muito rápida ele é muito afortunada nós encontra esta fábrica

—— Acelga de Mechile Kilar - Brazial

Nós temos cooperar com esta fábrica muitos anos, tudo vamos muito Well.l como esta fábrica!

—— Tony Hilton - Polônia

Esta é nossa terceira compra de Mittel, qualidade do tempo é muito bens, nós está contente de encontrar esta fábrica segura

—— Natalya Ugay-Rússia

A qualidade é muito boa e prazo de entrega muito rápido, nós queremos fazer o negócio longo dos termos com esta empresa

—— Pongpol Pluemsati-Tailândia

Estou Chat Online Agora

Hot Rolled Forged EN 10084-2008 DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar

Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar
Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar

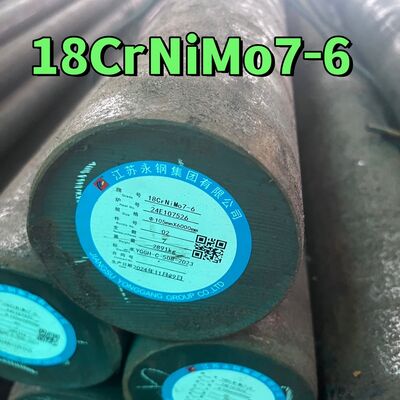

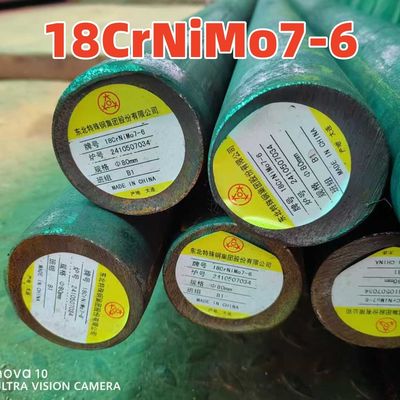

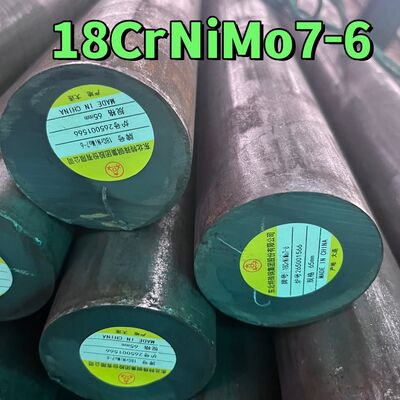

Imagem Grande :  Hot Rolled Forged EN 10084-2008 DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar

Detalhes do produto:
Lugar de origem: China
Marca: Mittel
Certificação: SGS MTC ISO
Número do modelo: 18Crnimo7-6 Equivalente a 1,6587 18NCD6
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 2 toneladas
Preço: 850-1390 USD/Ton
Detalhes da embalagem: Embalagem de exportação
Tempo de entrega: 7 dias
Termos de pagamento: L/C, T/T, Western Union, Moneygram
Habilidade da fonte: 600 toneladas por ano

Hot Rolled Forged EN 10084-2008 DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar

descrição
DO: 6-600MM Superfície: Preto e brilhante
Tipo: Laminados a quente e estirados a frio Doença: Tratamentos térmicos
Comprimento: 3-12m

Hot Rolled Forged DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar



About products
18CrNiMo7-6 is a case hardening steel with high toughness. There are a number of variants
with high cleanliness requirements. All variants possess tighter composition ranges compared
to the standard. One variant is produced with the quality class IQ (isotropic quality). This ensures
a very low number of elongated sulphide inclusions which will give more isotropic properties.
The high oxidic cleanliness will enable the steel to meet the same high cleanliness demands
as for re-melted qualities.


Chemical Composition(%)
C Mn Si Cr Ni Mo
0.15 - 0.21 0.50 - 0.90 0.40 1.50 - 1.80 1.40 - 1.70 0.25 - 0.35


Applications:

Due to its properties, DIN 1.6587 grade steel is used for strong and hard parts. It's good for big
parts that wear out quickly and carry heavy loads. This includes parts like big bushings, bearings,
cam parts, clutch pieces, bolts for compressors, fan rods, heavy gears, pump rods, sprockets,
tappets, wear pins, and wire guides.

Comparing 1.6587 Alloy Steel With Other Alloys

When pitted against other materials, 1.6587 steels often emerge as a top contender. It offers a
balance between hardness and toughness, something that not every alloy can promise.

Heat Treatment of 6587 Steel

Soft Annealing: Heat 6587 steel to 650-700oC, cool slowly in furnace. After annealing,
it achieves max hardness of 229.

Normalizing: 850-880oC, air.

Hardening: Carburising: 880-980oC. Core Hardening: 830-870oC, water.
Case Hardening: 780-820oC, water.

Tempering:Temperature: 150-200oC

Processing 1.6587 Alloy Steel: What You Need to Know

Whether you're looking to weld, form, or cut this steel, understanding its behavior under
various conditions is vital. Fortunately, with the right techniques, working with 1.6587 is a breeze.

Conclusion

1.6587, with its myriad of features, stands as a testament to the power of specialized alloys.
In a world constantly pushing the boundaries of engineering and design, materials like these
will inevitably lead the charge.






Grade : 18CrNiMo7-6
Number: 1.6587
Classification: Alloy special steel
Standard:
EN 10084: 2008 Case hardening steels. Technical delivery conditions
Equivalent grades: Go here



Chemical composition % of steel 18CrNiMo7-6 (1.6587): EN 10084-2008

Elements not quoted in this table shall not be intentionally added to the steel without the agreement of the purchaser, other than for the purpose of finishing the heat.
Steels with improved machinability as a result of the addition of lead or higher sulfur contents, depending on the manufacturing process up to around 0.1 % S, may be supplied on request. In this case, the upper limit of the manganese content may be increased by 0.15 %



C Si Mn Ni P S Cr Mo
0.15 - 0.21 max 0.4 0.5 - 0.9 1.4 - 1.7 max 0.025 max 0.035 1.5 - 1.8 0.25 - 0.35


Mechanical properties of steel 18CrNiMo7-6 (1.6587)


Nominal thickness (mm): to 16
Rm - Tensile strength (MPa) hardening and tempering at 200 1200



Brinell hardness (HBW): (+S) 255
Brinell hardness (HBW): (+A) 229
Brinell hardness (HBW): (+TH) 179 - 229
Brinell hardness (HBW): (+FP) 159 - 207


Equivalent grades of steel 18CrNiMo7-6 (1.6587)
Warning! Only for reference

EU
EN
Germany
DIN,WNr
France
AFNOR
England
BS
Italy
UNI
China
GB
Finland
SFS
Inter
ISO
18CrNiMo7-6
17CrNiMo6
17CrNiMo7
18NCD6
820A16
18NiCrMo7
17Cr2Ni2Mo
511
18CrNiMo7


NEW opportunities for buyers!
Post free buying requirement of steel 18CrNiMo7-6 (1.6587)

Mechanical properties

ReH Minimum yield strength / Mindestwert der oberen Streckgrenze / Limite d elasticite minimale
Rm Tensile strength / Zugfestigkeit / Resistance a la traction
A Minimum elongation / Mindestwert der Bruchdehnung / Allongement minimal
J Notch impact test / Kerbschlagbiegeversuch / Essai de flexion par choc


Heat treatment conditions


+A Soft annealed
+AC Annealed to achieve spheroidization of the carbides
+AR As rolled
+AT Solution annealed
+C Cold drawn / hard
+CR Cold rolled
+FP Treated to ferrite-pearlite structure and hardness range
+I Isothermal annealing
+LC Cold drawn / soft
+M Thermo mechanical rolling
+N Normalized
+NT Normalized and tempered
+P Precipitation hardened
+PE Peeled
+QA Air quenched and tempered
+QL Liquid quenched and tempered
+QT Quenched and tempered
+S Treated to improve shearability
+SH As rolled and turned
+SR Cold drawn and stress relieved
+T Tempered
+TH Treated to hardness range
+WW Warm worked
+U Untreated



Alloy special steel
Chemical composition of steel 18CrNiMo7-6 (1.6587), Standards of steel 18CrNiMo7-6 (1.6587)
Mechanical Properties of steel 18CrNiMo7-6 (1.6587) Equivalent grades of steel 18CrNiMo7-6 (1.6587)
Tensile Strength, Elongation, Proof strength, Hardness



Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar 0Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar 1Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar 2Hot Rolled Forged  EN 10084-2008  DIN 1.6587 18crnimo7-6 Alloy Steel Round Bar 3

FAQ
1) why you chose us ?
Because we have large stocks and we have long term cooperative factories. We can get the lowest ex-factory prices. The price are quite reasonable and it is lower than our commercial peers. Also, we can guarantee the quality of our products.
2) Our minimum order quantity:
15 Metric Tons
3) How about the Delivery Time?
The steel pipe will be produced since we getting your deposit by T/T or original L/C, and delivery to the port of loading within 25~30 days.
For normal size, some stocks in our factory now, we can shipment within 7~10 days after receive the deposit.
4) What kind of payment does your company support?
T/T, 100% L/C at sight.
5) Do you charge for the samples?
No, we provide samples free, you pay for the freight charge.
6) Main market:
Mid East South America South Asia Africa Southeast Asia Northern Europe Western Europe etc.
