Detalhes do produto:
|
Diâmetro externo: | 6 ~ 860mm | Usado: | Maquinaria médica |
---|---|---|---|
Forma de seção: | Esferas ocas | Inspeção: | E, GH, UT, PMI |
Resistência à temperatura: | Alto | Espessura da parede: | Personalizável |
Ndt: | ET, UT, HT , | Diâmetro externo: | 6 mm a 610 mm |
Tratamento de superfície: | Recozido brilhante | Sufacce: | Polido |
Faturamento: | por peso teórico | Especificação: | A norma ASTM A213, a norma ASME SA213 |
Serviço: | corte/ polimento | Aplicativo: | Industrial, químico, processamento de alimentos, médico |
Testes: | NDT Eddy Current Or Hydraulic Test | ||

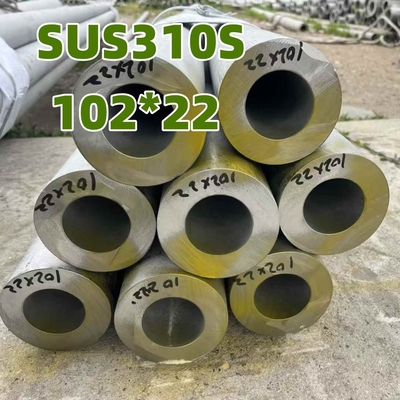

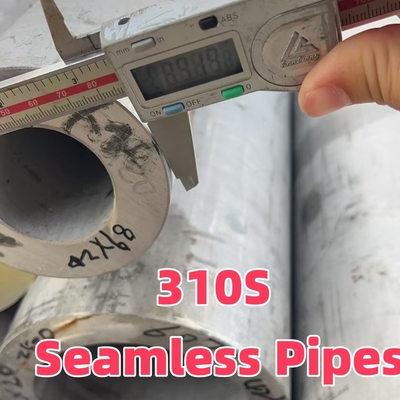

Destacar: | SUS310S stainless steel seamless pipe,ASTM A312 TP310S hollow shaft bar,OD102MM ID58MM stainless steel tube |
Stainless steel pipe is a hollow strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used as furniture and kitchenware.
Product name
|

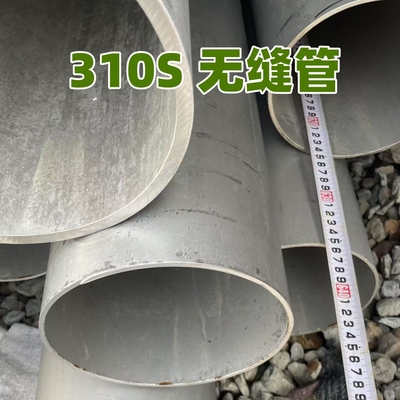

Seamless Stainless Steel Pipe /Tube
|
|
Steel grade
|
310S 321 304 304L 904l 2205 2507
|
|
Standard
|
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296
|
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202
|
|
Surface
|
Polishing,annealing,pickling,bright
|
|
Type
|
hot rolled and cold rolled
|
|
Size
|
Wall thickness
|
1mm-150mm(SCH10-XXS)
|
Outer diameter
|
6mm-2500mm (3/8"-100")
|
|
Delivery time
|
Prompt delivery or as the order quantity.
|
|
Package
|
1.By bundles, each bundle weight under 3 tons, for small outer diameter seamless steel pipe, each bundle with 4-8 steel strips;
2.After making by bundle, covered with Polyethylene waterproof cloth; 3.Customized is accepted. |
|
Container size
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0- |
316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 - |
321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Q1. What are your company's main products ?
A1: Our main products are stainless steel, carbon steel, galvanized steel, aluminium steel, ppgi steel products, including sheets,pipes, coils, strips, bars and channels.
Q2. What are the advantages of your company ?
A2: We guarantee that the quantity and specification of products are in full compliance with the standards of customer orders. We support any kinds of test. In addition, We also have more professional service and competitive price.
Q3. How do you control quality ?
A3: We provide Factory Test Report, also support Third Party Inspection.
Q4. How many countries you already exported ?
A4: Exported to more than 50 countries mainly from Middle East, Russia, United States, Canada, Italy, Germany, Australia, Egypt, UAE, Vietnam, Kuwait, Sri Lanka, Indonesia, Bangladesh, Turkey, India, etc.
Q5. Can you provide sample ? Do you support OEM ?
A5: Yes. Small samples in store can be provided for free. Customized samples will take about 2-3 days.
Q6: What's your payment terms ?
A6: By T/T, L/C (30% deposit in advance, balance 70% before shipment), Western Union, Paypal, or Trade Online.
